Name: Practical 5000 Times Military Electrical Connectors Male Female
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: RM-FG2-0U1S-P13KS
Price: 12.30 USD
Availability: InStock

Practical 5000 Times Military Electrical Connectors Male Female

Podstawowe informacje

Miejsce pochodzenia:	Shenzhen, Chiny
Nazwa handlowa:	RAYMO
Orzecznictwo:	ROHS CE SGS ISO:9001-2015
Numer modelu:	RM-FG2-0U1S-P13KS

Minimalne zamówienie:	1 sztukę
Cena:	negotiable
Szczegóły pakowania:	Plastikowa torba i karton
Czas dostawy:	5-7 dni roboczych
Zasady płatności:	T/T, L/C, T/T, Western Union
Możliwość Supply:	5000 sztuk / tydzień

Skontaktuj się teraz

Nazwa PRCT:

Wodoodporne złącze ultimatelowe

Rozmiar skorupy:

0U (= 07), 1U (= 08)

Płeć:

mężczyzna, kobieta

Nr kontaktowy:

2-14 szpilki

izolator:

PPS, zajrzyj

Wytrzymałość:

5000 razy

Ranking IP:

IP68 wodoodporność

Typ kontaktu:

STAB/PCB PCB/90 ° PCB

materiał styków:

Mosiądz z pozłacanym

Kabel zmontowany czy nie:

Tak

Podkreślić:

SGS Military Electrical Connectors

IP68 Military Electrical Connectors

SGS Military Cable Connectors

Practical 5000 Times Military Electrical Connectors Male Female

Simple Practical Military Circular Connectors Cost Effective Good Sealing Performance

Prct Description

RM-U Series Ultimate series IP68 waterproof Metal circular push pull connectors

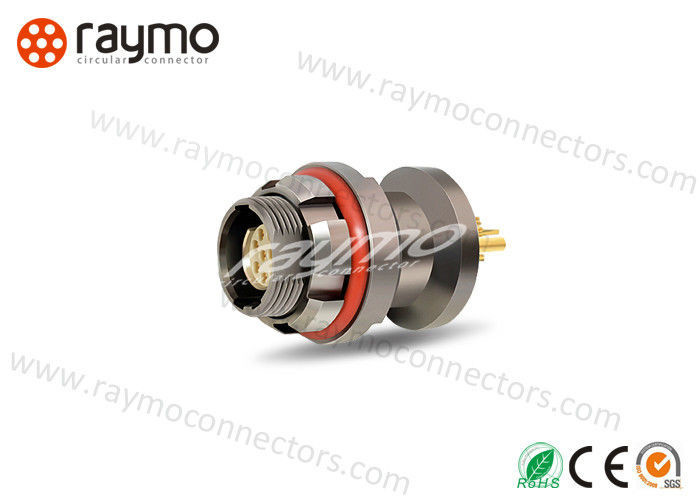

Part No.:	UR02L07M010SBK1 / RM-FG2-0U1S-P13KS
Prct Description:	0U(=07) size cable mount push pull connector, FG2 model panle mounted socket, 13pin female contact, code 1, gun-color chrome plated shell in brass

Waterproof Push pull locking metal connector U-series connector, cable to cable connector, free socket, inline connector

Main Futures
1	Secure high performance IP68 waterproof push-pull Self-locking system
2	can be 100% compatible with original Fischer connector
3	can be with different code, code 1,2,3
4	360 angle screening for full EMC shielding.
5	Available solder and PCB or right angle PCB contact.
6	can plated with white or black chrome.
7	SO:9001-2015, CE ,RoHS2.0, SGS, Reach

Technical Characteristics
Temperature Range	- 65° C, +200° C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shell Material	Brass with chrome plated	Humidity	up to 95% at 60° C/140F
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>144 hr
Climatical Category	50/175/21	Shielding (min)	> 95 dB [ at 10 MHz], > 80 dB [ at 1 GHz]
IP Rating	IP 68	Endurance(shell)	≥5000 mating cycles

Practical 5000 Times Military Electrical Connectors Male Female 0

Shell size	Contacts no. ( Both with Solder & PCB type )
Shell size	Contacts no. ( Both with Solder & PCB type )										0U(=07)	2	3	4	5	7	9	10	13
1U(=08)	2	3	4	5	6	7	8	10	12	14

Our Company

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented circular push pull connector and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers

RAYMO's high quality connectors are found in a variety of challenging applications and environments including:

Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application.

Our Exhibition

2020.11	Electronica Munich, Germany
2019 9.24-9.26	Testing Expo, Shanghai
2018 11.12-11.15	Electronica Munich, Germany
2017 9.11-9.16	NAB Show,Netherlands
2016 4.11-4.15	HK Fair
2015 10.2-10.7	ICEEB, Brasil
2014 10.11-10.15	HK Fair
2014 4.11-4.15	HK Fair

Why Choose US?

100% compatible with lemo, , fischer connector
Help you save at least 50% cost
All the prcts we got CE, ROHS, SGS,ISO9000 certificate
Fast delivery: 2-15 working days
Cable assembly offer, help you save prction time
We can provide OEM/ODM service and cable assembly solution
it has excellent compatibility with many leading supplier

our company has over 9 years experience and strong professional research and development capabilities.Advanced development and management, comprehensice R&D TESTING and highly automatic prction line make our prcts high reliablilyty and high performance.
Our comapny has passed ISO90001,and got CE, REACH, RoHS and SGS certification

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
