Dom ProduktyJ30J ConnectorJ30J Series 9-Pin Miniature Rectangular Connector 500VAC 125°C

J30J Series 9-Pin Miniature Rectangular Connector 500VAC 125°C

J30J Series 9-Pin Miniature Rectangular Connector 500VAC 125°C
J30J Series 9-Pin Miniature Rectangular Connector 500VAC 125°C J30J Series 9-Pin Miniature Rectangular Connector 500VAC 125°C
Podstawowe informacje
Nazwa handlowa: Raymo
Orzecznictwo: CE/RoHs/REACH/ISO9001:2015
Numer modelu: MDM-9pbr
Dokument: J30J Miniature Rectangular ...es.pdf
Minimum Order Quantity: 1 Piece
Cena: 5-15 USD
Packaging Details: CTN
Delivery Time: 3-4 Weeks
Zasady płatności: T/T, D/A, D/P, Western Union, Moneygram
Supply Ability: 5000PCS Per Month
Skontaktuj się teraz
wytrzymać napięcie: 500 V AC Zakres temperatur: -55～+125 ℃
Zastosowanie: Sprzęt elektroniczny Odległość siatki: 2,54 × 2,54
Kabel godowy: AFR-250, biały drut 0,1 ~ 0,15 mm2 Szybkość wycieku: ≤1,01x10^-3 pa.cm^3/s
dyrygent Centrum: Stop miedziany, złote Kołek kontaktowy: 9 pinów
Podkreślić:

J30J series 9-pin connector

,

miniature rectangular connector 500VAC

,

J30J connector 125°C rated

ITT Cannon MDM Series MDM-9PBR Elbow Contact 9 Pin Miniature Rectangular Connector for Electronic Equipment
Product Specifications
Attribute Value
Withstanding Voltage 500VAC
Temperature Range -55～+125 ℃
Application Electronic Equipment
Grid Distance 2.54×2.54
Mating Cable AFR-250, White Wire 0.1~0.15mm²
Leak Rate ≤1.01×10⁻³ Pa.cm³/s
Center Conductor Copper Alloy, Gold Plating
Contact Pin 9 Pins
Product Overview
The J30J series connector is a high-quality miniature rectangular connector designed for demanding industrial applications. Part of the renowned MDM series, this connector delivers exceptional performance, durability, and precision engineering.
Key Features

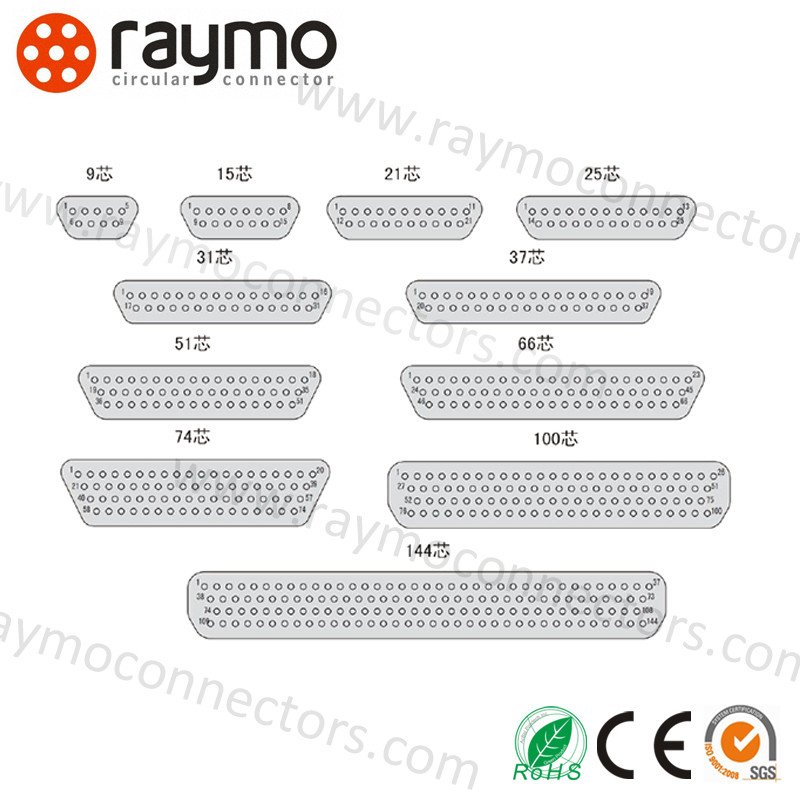

  • Available in multiple pin configurations: 9, 15, 21, 25, 31, 37, 51, 66, 74, and 100 pins
  • Rated for 500 mating cycles for long-term reliability
  • Customizable cable length to meet specific application requirements
  • Wide operating temperature range (-55°C to +125°C) for extreme environments
  • High-quality copper alloy center conductor with gold plating for optimal conductivity
  • Compact, lightweight design ideal for space-constrained applications
Technical Parameters
Parameter Value
Withstanding Voltage 500VAC
Voltage Rating 250V
Mating Cycle 500 Times
Wire Length Options 50cm, 500mm, or custom length
Applications
The J30J series connector is ideal for various electronic equipment applications, particularly where reliable miniature rectangular connectors are required. Its compact size and excellent performance make it suitable for:
  • Industrial control systems
  • Medical equipment
  • Telecommunications devices
  • Aerospace and defense electronics
  • Automotive electronics
Certifications & Compliance
The product meets international quality standards including CE, RoHS, REACH, and ISO9001:2015 certification.
Support & Services
Our technical support team provides comprehensive assistance including product inquiries, installation guidance, troubleshooting, and maintenance services. We also offer repair and replacement services to ensure optimal performance of your J30J series connectors.

Etykietka:

J30J series gold plated connector

MIL-Spec micro-D connector

2.54×2.54 grid connector
