High Performance J30J Miniature Rectangular Electronic Connector Description
Raymo J30J series are small, high-density connectors used where standard d-sub connectors had typically been used, but size and weight are of concern.
It is equivalent to ITT Cannon MDM series MIL-DTL-83513 micro-D connectors.
High Performance J30J Miniature Rectangular Electronic Connector main features:
-
This series is equivalent to USA MDM series;
-

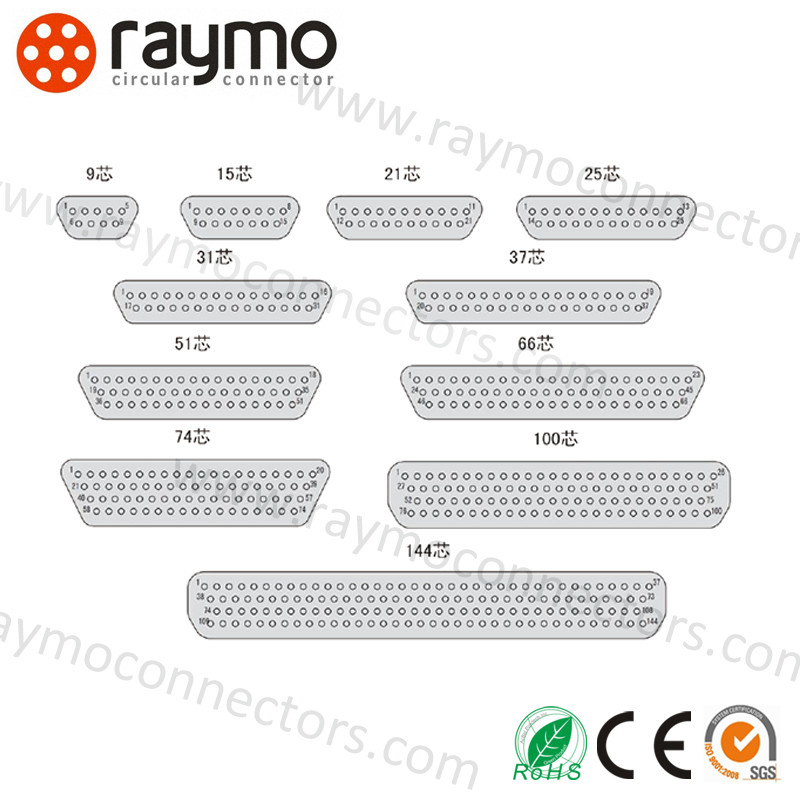

Nine types :9, 15, 21, 25, 31, 37, 51, 74, 100;
-
Mated wire section area: 0.1～15 mm2;
-
This series employs high-density flexible pins;
-
Meeting the requirements of GJB2446 “Polarized shell, micro miniature rectangular electrical connector general specification” (equivalent to MIL-C-83513);
High Performance J30J Miniature Rectangular Electronic Connector Parameter
|
Category
|
ITT Cannon MDM series micro-D connectors
|
|
Part number
|
J30J-9TJ
|
|
Connector Type
|
Plug
|
|
Orientation
|
Hermetic Square flange
|
|
Contact Type
|
Male Pin
|
|
Number of Positions
|
9
|
|
Mounting Type
|
Panel Mount
|
|
Contact Termination
|
Solder
|
|
Protection Rating
|
IP67
|
High Performance J30J Miniature Rectangular Electronic Connector tecnical performance
|
Test Voltage
|
600 Vac a t son level
150 Vac at 70,000 feet (23410 meters)
|
|
Current Rating
|
3 Ampo
|
|
Contact Resistance
|
’8 milliohms maximum at 3 amps
10 milliohns maximum at 1 milliamp:ML-STD-202 Method 307
|
|
Insulation Resistance
|
5000 megaohms minimum at 500 Vdo
|
|
Magnetic Permeability
|
2.0μ(connectors less hardware)
|
|
Thermal Vacuum
|
per NASA SP-R-0022(space class only)
|
|
Mating Life
|
500 cycles minimum
|
|
Salt Spray
|
48 hours ML-STD-1344 Method 1001 Condition B
|

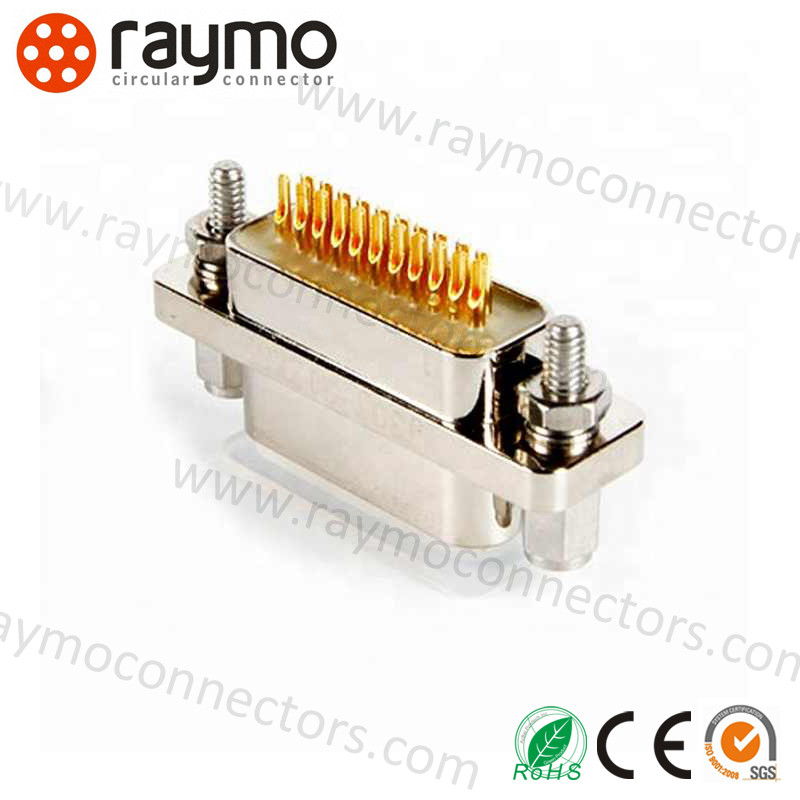

High Performance J30J Miniature Rectangular Electronic Connector pictures
High Performance J30J Miniature Rectangular Electronic Connector Application
This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military
About SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED
As a professional in design and manufacture all kinds of connectors and special cables, have accumulated rich experience in development and prction for kinds of cables and its related connector adapter.With RED/Teradek Bond/ARRI Camera Cable, Canon / Sony Camera Power Cable, SDI Cable, USB Cable, Video Cable, CCD Cable...
We supply different OEM/ODM services serve as different application and requirement.
Our prcts are widely used in kinds of harsh environment and applications, like industrial control devices, medical equipment, measuring and inspecting equipment, audio & visual equipment and military, etc.
Furthermore, it has excellent compatibility with many leading supplier.
We always adhere to the spirit of innovation, continue to intrce new prcts series include M5,M8,M9,M12,M16,M23 and other data connectors.With IP68, ISO9001,Rohs,CE, REACH certificate approved.
Our Service
High Quality: CNC machine, professional engineer, skilful worker, responsible QC ensure our high quality prcts;
OEM & ODM: OEM & ODM services are welcome;
Sample policy: Free sample & sample order are accepted;
Fast delivery: 3~5 working days after receiving payment for normal connectors;
Fast Respond: within 24 hours for your inquiry and any other questions;
After-sale Service: Follow up your shipment. Provide professional solutions for your questions.
