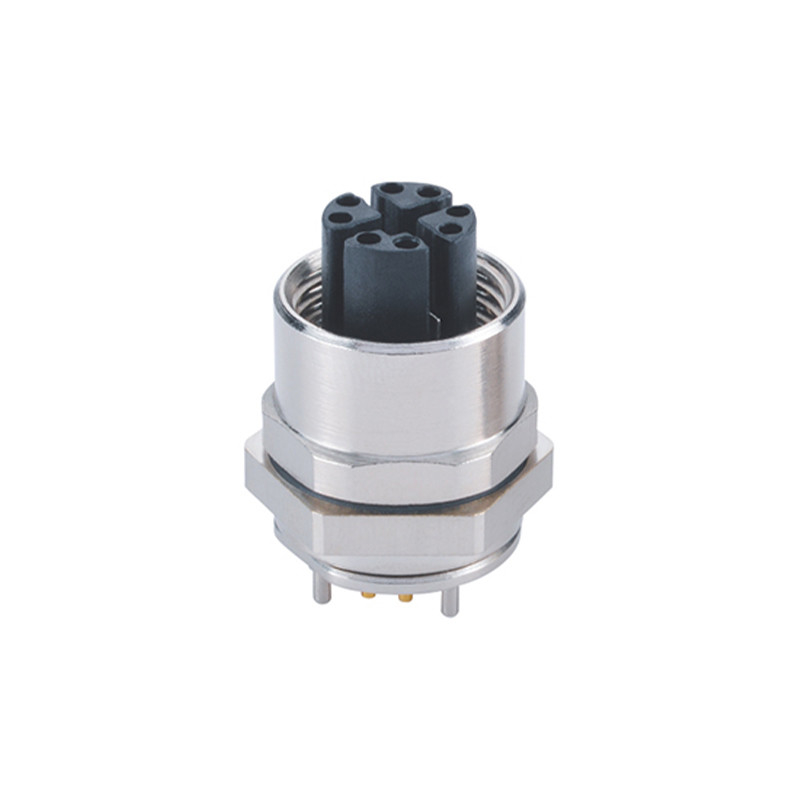

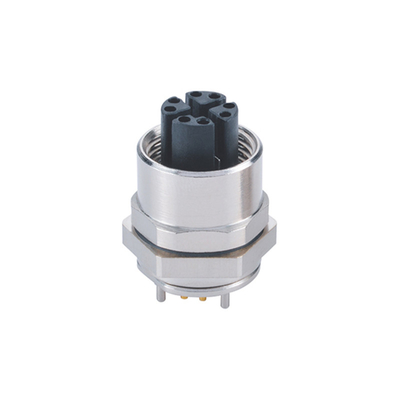

Description for panel mount m12 connector miniature circular waterproof sensor connector
Raymo M12 circular connectors facilitate the simple and cost-effective connection of signal, data and power in the automation industry. Raymo M12 series are widely used in many applications of automatio, such as sensor & actuator, CANopen, DeviceNET, Profibus, Profinet, EtherCAT, Ethernet, Interbus, CC-Link, Motor servo, Digital camera, Railway process control,,, and so on.
Specification for panel mount m12 connector miniature circular waterproof sensor connector
| Prct attribute |
Attribute Value |
| Manufacturer |
RAYMO |
| Prct name |
Circular screw waterproof connectors |
| Connector size |
M12 |
| Contact Gender |
Pin(Male), pole(female) |
| Number of contacts |
8 contacts |
| Mounting Style |
Straight/Elbow |
| Termination Style |
Solder/print/PCB |
| Current Rating |
1.5-3A |
| IP Rating |
IP67 |
| Application |
Sensors, Actuators |
| Shell Material |
(1) Connector material: Plastic PA+GF
(2) M8 male to female molded cable
(3) Contacts:Brass, Gold Plated
(4) Cable material: PVC/TPU |
| Wire Gauge |
24-28AWG |
| Certifications |
ISO9001/ CE/ ROHS2.0/ SGS |
| Temperature Range |
-25°C, +80°C |
Electrical data & Mechanical data for panel mount m12 connector miniature circular waterproof sensor connector
| Contacts |
Rated current |
Voltage |
Wire gauge/size |
| A/C |
D/C |
mm2 |
AWG |
| 3 pins |
3A |
50V |
60V |
0.25 |
24 |
| 4 pins |
3A |
50V |
60V |
0.25 |
24 |
| 5 pins |
3A |
30V |
30V |
0.25 |
24 |
| 6 pins |
1.5A |
30V |
30V |
0.14 |
26 |
| 8 pins |
1.5A |
30V |
30V |
0.14 |
26 |
Features for panel mount m12 connector miniature circular waterproof sensor connector
- Design as per IEC 61076-2-104
- Size can be M5,M8,M12,M16
- Gold-plated ternimals
- Degree of protection IP67
- 3,4,5,6,8 poles are available
- Anti-vibration locking screw design
- Excellent performance
- Perfect O-ring tightened sealing
- Cable length customized, PUR and PVC cable options
Application for panel mount m12 connector miniature circular waterproof sensor connector
- Studios and outside broadcasting
- Target acquisition
- Computers
- Industry
- Telecommunication system
- LED lighting & LED display
- Measuring & Testing
-
Medical industry
Our advantage for panel mount m12 connector miniature circular waterproof sensor connector
- Original manufacturer
- Excellent R&D team
- 10+ years experience
- OEM & ODM acceptable
FAQ for panel mount m12 connector miniature circular waterproof sensor connector
-What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons.
OEM&ODM is available after getting your authorization letters.
-What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
-What is your terms of payment?
A: T/T 100% or Alibaba on-line order are both OK.
