Panel Mount Miniature Circular Connectors Sensor M8 8 Pin Female Connector

Podstawowe informacje
Miejsce pochodzenia: Shenzhen, Chiny
Nazwa handlowa: RAYMO
Orzecznictwo: RoHS2.0, ISO:9001-2015, CE , SGS, REACH
Numer modelu: RM-M8-8
Minimalne zamówienie: 1 przedmiot
Cena: negotiable
Szczegóły pakowania: 100 szt./szt
Czas dostawy: 5-8 dni roboczych
Zasady płatności: D/A, D/P, T/T, Western Union, MoneyGram, akredytywa
Możliwość Supply: 5000 sztuk/tydzień
Nazwa PRCT: Miniaturowe okrągłe złącze Liczba kontaktów: 8 szpilek
Typ montażu: Mocowanie panelu Metoda zakończenia: Lut/płytka drukowana
Kontakt Płeć: Kobieta Ocena IP: IP67
Obecna ocena: 1,5a Orientacja ciała: Prosty
Podkreślić:

Panel Mount Female Miniature Circular Connectors

,

M8 8 Pin Miniature Circular Connectors

,

Sensor M8 8 Pin Female Connector

Description for panel mount sensor M8 8 pins female miniature circular connector



The M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Available in a shielded form and rated to IP67, these connectors are ideally suited for inductrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacle supplied with a solder-up for wire connecting or with PCB panel solder contacts. A field attachable/mountable connector is also available.





Specification for panel mount sensor M8 8 pins female miniature circular connector



Prct attribute Attribute Value
Manufacturer RAYMO
Prct name miniature circular connector
Connector size M8
Contact Gender pole(female)
Number of contacts 8 contacts
Mounting Style Panel mount
Termination Style Solder/PCB
Current Rating 1.5A
IP Rating IP67
Application Sensors, Actuators
Shell Material (1) Connector material: Plastic PA+GF
(2) M8 male to female molded cable
(3) Contacts:Brass, Gold Plated
(4) Cable material: PVC/TPU
Wire Gauge 24-28AWG
Certifications ISO9001/ CE/ ROHS2.0/ SGS
Temperature Range -25°C, +80°C

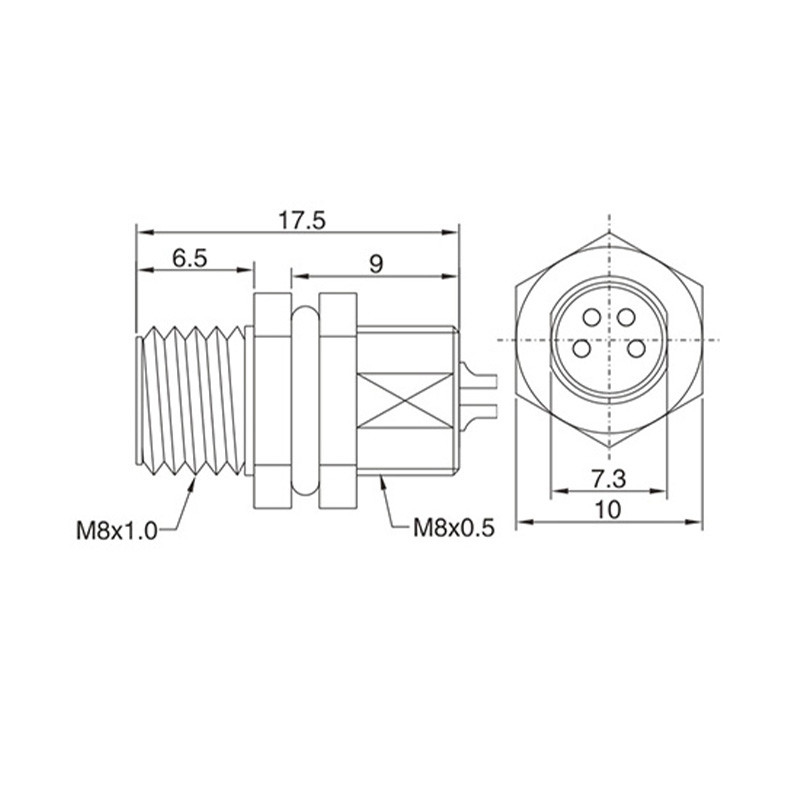

Electrical data & Mechanical data for panel mount sensor M8 8 pins female miniature circular connector



Contacts Rated current Voltage Wire gauge/size
A/C D/C mm2 AWG
3 pins 3A 50V 60V 0.25 24
4 pins 3A 50V 60V 0.25 24
5 pins 3A 30V 30V 0.25 24
6 pins 1.5A 30V 30V 0.14 26
8 pins 1.5A 30V 30V 0.14 26



Features for panel mount sensor M8 8 pins female miniature circular connector



Application for panel mount sensor M8 8 pins female miniature circular connector



With professional R&D and excellent craftsmanship, our factory has ability of providing customer with much more precision connectors and cable harness solutions to meet customer's demand in this fields.



Our advantage for panel mount sensor M8 8 pins female miniature circular connector



panel mount sensor M8 8 pins female miniature circular connector
