FS2 FG8 0B 1B Audio Video Arri Camera Waterproof Circular Push Pull Connector
MINI-SNAP SERIES L
The MINI-SNAP Series L is keyed by pin and groove. These Push-Pull circular connectors can be configured
in many different ways: a different variety of sizes and contact inserts are available.
Description:

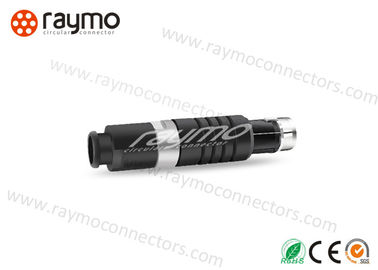

RM-FS2.0L0S.P09JS50Z
Push pull circular cable connectors, 9 pins male solder contacts, male solder contacts, shell in black color,
50 cable collet for arri alexa mini camera
RM-L series circular push pull connectors main features:
1. Security of the Push-Pull self-latching system
2. Up to 4 sizes and 3 termination types
3.Choice of numerous plugs and receptacles
4. 360° screening for full EMC shielding
5. Multi-pole types 2 to 26 contacts
6. High packing density for space savings
7. IP6 ranking waterproof function
Technical characteristics:
1. Endurance:> 5000 mating cycles
2. Humidity :Up to 95% at 60 ℃
3. Temperature range:-40 ℃, +250 ℃
4. Resistance to vibration :15 g[10 HZ-2000HZ]
5. Shock resistance:100 g ,6 MS
6. Salt spray corrosion test :> 96h
RM-L series Shell size and Contacts of circular push pull connector
|
RM-0L
|
2pins 3pins 4pins 5pins 6pins 7pins 9pins
|
|
RM-1L
|
2pins 3pins 4pins 5pins 6pins 7pins 8pins pins 10pins 12pins 14pins 16
|
Industry Application:
It is widely used on all kinds of medical equipments, specially for Studios and outside broadcasting, TV
and motion picture, HD and SD cameras , Remote camera control and military application
Company of Raymo:
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED as a professional in design and manufacture
all kinds of connectors and special cables, have accumulated rich experience in development and prction
for kinds of cables and its related connector adapter. With RED/Teradek Bond/ARRI Camera Cable, Canon
Sony Camera Power Cable, SDI Cable, USB Cable, Video Cable, CCD Cable... We supply different OEM/ODM
services serve as different application and requirement.
