Dom Produktypołączacze przyciągania i pchania9 Pin 360° EMC FGG 0B 309 CLAD Circular Push Pull Connectors

9 Pin 360° EMC FGG 0B 309 CLAD Circular Push Pull Connectors

9 Pin 360° EMC FGG 0B 309 CLAD Circular Push Pull Connectors
9 Pin 360° EMC FGG 0B 309 CLAD Circular Push Pull Connectors 9 Pin 360° EMC FGG 0B 309 CLAD Circular Push Pull Connectors 9 Pin 360° EMC FGG 0B 309 CLAD Circular Push Pull Connectors
Podstawowe informacje
Miejsce pochodzenia: Shenzhen, Chiny
Nazwa handlowa: RAYMO
Orzecznictwo: RoHS2.0, ISO:9001-2015, CE , SGS, REACH
Numer modelu: RM-FGG.0B.309.CLAD
Minimalne zamówienie: 1 przedmiot
Cena: negotiable
Szczegóły pakowania: 100 szt./szt
Czas dostawy: 5-7 dni roboczych
Zasady płatności: Western Union, T/T, D/P, D/A, L/C, Moneygram
Możliwość Supply: 5000 sztuk/tydzień
Skontaktuj się teraz
Nazwa PRCT: Push Pull Connector Stosowanie: Transfer sygnału
Rozmiar skorupy: 0B Nr kontaktowy: 9 pinów
Terminal: Lutować Ranking IP: IP50
Podkreślić:

FGG Circular Push Pull Connectors

,

0B Circular Push Pull Connectors

,

360° EMC Circular Metal Connectors

FGG.0B.309.CLAD 9 pin plug male signal solder Circular Push Pull Connectors



Prct description

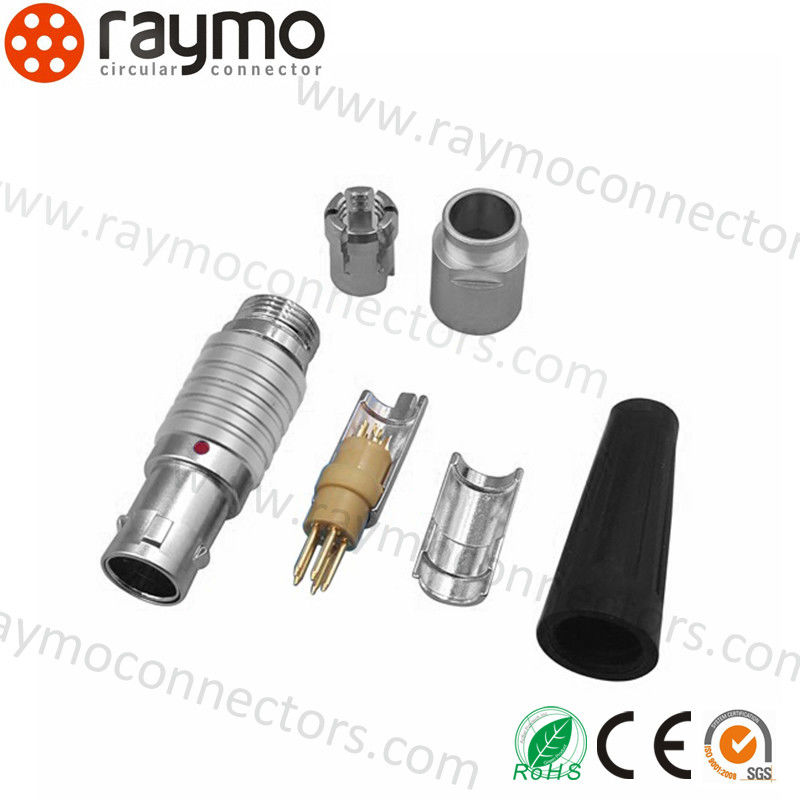

FGG.0B.309.CLAD52Z = RM-FGG-0BC-309-JS52Z .Straight plug with key(G) and cable collet, 0B series, multipole 9 contacts, outer shell in natural chrome-plated brass, PPS insulator, male solder contacts, collet for 4.2-5.2mm diameter cable, nut for fitting a bend relief, IP50.

RM-B series metal circular push pull connector with below features:



Secure high performance push-pull self-locking system



1.High pin density contributing to equipment miniaturization



2.Alignment Key and Polarized Keying System to avoid cross-interface



3.360° EMC shielding



4.Robust and shock resistant designs



5.Functional in a wide temperature range from -50°C to +250°C



6.Available solder, PCB and right angle PCB contact



Shell size Contacts no. With Solder & PCB type
00 2 3 4 　 　 　 　 　 　 　 　 　 　 　
0B 2 3 4 5 6 7 9 　 　 　 　 　 　 　
1B 2 3 4 5 6 7 8 10 12 14 16 　 　 　
2B 2 3 4 5 6 7 8 10 12 14 16 19 26 　
3B 3 4 7 8 10 12 14 16 18 21 30 　 　 　



Technical Characteristics
Temperature Range
-55°C, +250°C
Resistance to vibrations
15 g [10 Hz - 2000 Hz]
Shock Resistance
100 g [ 6 ms]
Salt spray corrosion test
>96hrs
Climatical Category
50/175/21
Humidity
Up to 95% at 60°C
IP Rating
IP50
Certifications
ISO9001/ CE/ ROHS2.0/ SGS







Company intrce





Founded in 2010, we are a manufacturer specialized in manufacturing and exporting higher-quality precision connectors. We have ability to offer customers more than 10,000 combinations and the range of our prcts is continuously increasing due to customers' specifications and re-engineering designs. Most of our prcts have been distributed all over the world, such as Europe, Asia, the USA, Africa, the Middle East and Australia. All the high-quality items have been widely used in various industries, such as challenging applications, environments and industries including computer, medical, industrial control, test and measurement, AV, household, locomotive, petroleum, communication and information technology. We also can provide customers with access to many of today's well-known brand compatible connectors at very competitive prices with off-the-shelf delivery. What's more, we have a wide access to many other sources that could help you find what you need. Contact us today to get your order started.



Applications



RAYMO connectors have been widely used in the areas of telecommunication, electronics, medical equipments, aviation, audio-video, petroleum, motor and power industries, electrical signal connection, IC control systems, test and measurement instruments, ect.





FAQ



Q1. What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons.
OEM&ODM is available after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100% or Alibaba on-line order are both OK.
Q3. How about your delivery time?
A: Generally, it will take 5~7 working days after receiving your advance payment.
Q4. Can you prce according to the samples?
A: Yes, we can prce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
