OEM ODM Miniature Circular Connectors Fast Delivery PPS Insulator CE ROHS Certified

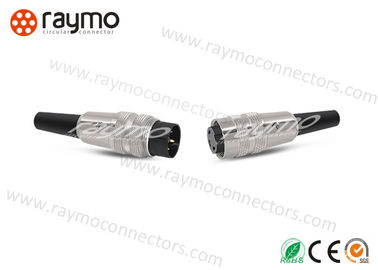

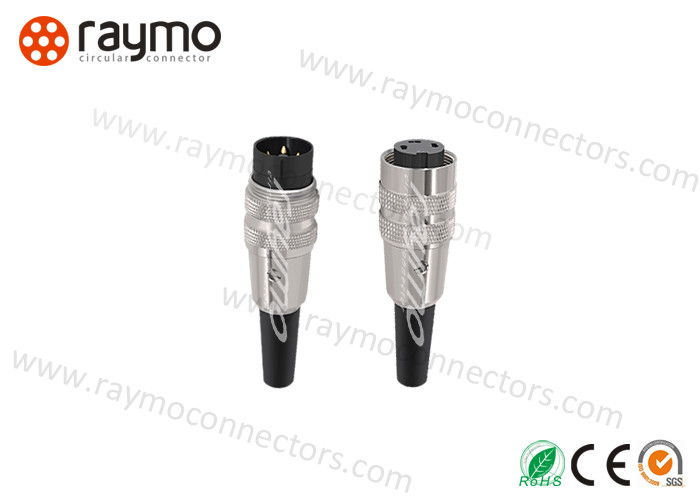

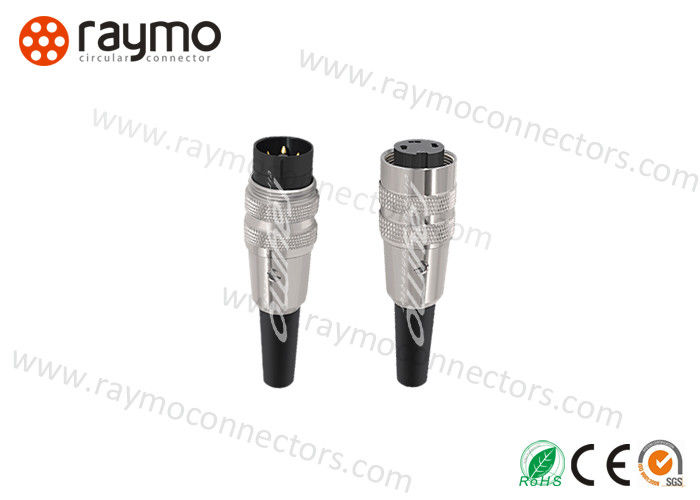

RAYMO MINIATURE STYLE CONNECTORS M16 SCREW LOCKINGSOCKET WITH ROUND GLANGE MOUNTING 680 SERIES CABLE MOUNT PLUG

• SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers.
• RAYMO has announced a new release in the miniature style connectors in 2019 to include an M16 SCREW LOCKING  socket with square flange mounting. In the industrial segment, miniature connectors are particularly important for measurement and control technology. M16 connectors are distinguished by their wide range of characteristics and designs.

• OEM / ODEM
• 7*24HOURS
• SMALL ORDER
• FREE SAMPELS
• FAST DELIVERY
• CABLE ASSEBLY.
• CE ROHS2.0 CERTIFIFIED

• Compatible with BINDERS  MINIATURE STYLE CONNECTORS M16 SCREW LOCKING SOCKET
• Panle PCB connector Circular push pull connectors

• Straight PCB, solder and elbow PCB contacts are available

1. Shell Style/Model: cable plug, screw fixing

• Housing Material: Brass (nickel plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
• Configuration:max, 0.75mm²(max. AWG 20) ( 3-8 poles), max, 025mm²(max. AWG 24) (12 poles )
• Cable outlet: suit for cable OD 3-6mm/6-8mm
• Contact Type: Solder type and PCB type
• Max. Matings: 1000
• Upper temperature: +85°C
• Lower temperature:-40°C
• Rated current (40 °C): 7A 2-3 poles; 6A 4-6 poles; 5A 7-8poles; 3A 12poles

1.  Medical
2. Test & measurement
3. Transport
4. Defense & Security
5. Broadcast
6. Energy
