Aviation circular push pull connector, double slot FGJ EGJ 0B 1B 45 degree double key connector, EGJ.1B.305

Parts Description

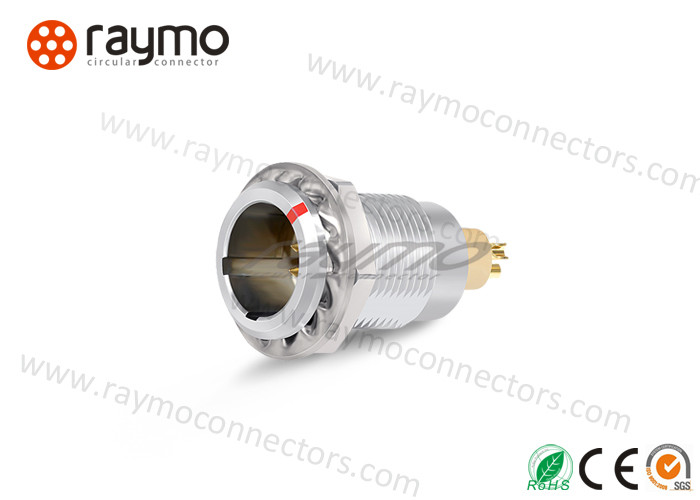

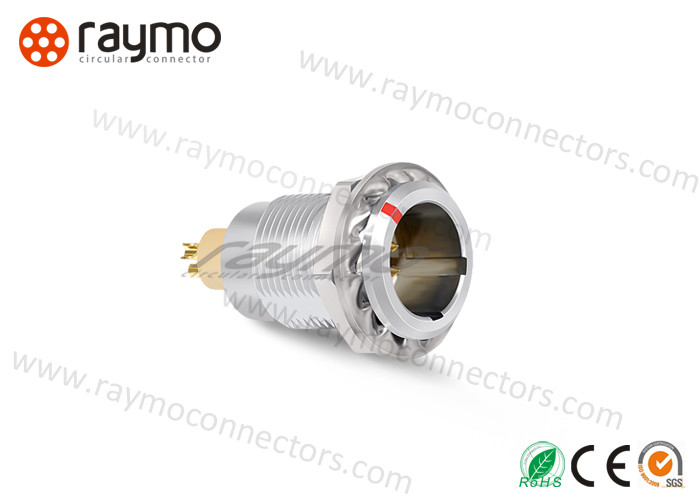

EGJ Panel mount socket, 2 keys, 45 degrees, 1B shell size with 5 poles male solder contacts
Different shell size from 00B to 4B

Technical Characteristics

Temperature Range	- 40° C, +125° C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shell Material	Brass with chrome plated	Humidity	up to 95% at 60° C/140F
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>144hr
Climatical Category	50/175/21	Shielding (min)	> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating	IP50	Endurance(shell)	5000 mating cycles

Main Features

1	push-pull self-locking connector, 100% compatible with original LEMO connector
2	a variety of size optional(00B, 0B, 1B, 2B, 3B)
3	solder or crimp core; straight or 90 degree
4	meet the most industries (like medical equipment, test equipment, machinery, audio and video broadcasting, telecommunications and military, etc.) any one of the special application requirements
5	360 degree complete EMC shielding, shock resistance, vibration resistance and corrosion resistance
6	you can buy FGG or EGG connector separately, or both

Contacts And Model

LEMO Type	Raymo Type	Pins
EGJ.1B.305.CLA	RM-EGJ-1BC-.305-JS	8
0B	RM-0B	2 3 4 5 6 7 9
1B	RM-1B	2 3 4 5 6 7 8 10 12 14 16
2B	RM-2B	2 3 4 5 6 7 8 10 12 16 19 20 26
3B	RM-3B	3 4 6 8 9 10 12 14 16 18 21 226 30 32
4B	RM-4B	7 10 24

Company Intrce

RAYMO is a manufactuer that:

Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly.
Can be 100% compatible with original LEMO • •FISCHER• HIROSE • BINDER •Military 38999
Series has RM-B, RM-K, RM-S, RM-F,RM-E,RM-HR10A, RM-P, RM-M4, RM-M12, RM-M16, BNC, B680,B423 , 38999, 26482
CO, Form A, Form E for customer clearance
CE, ROHS, REACH, ISO:90001-2015, SGS Audited manufacturer
All the items can work normally after 5000times mating

Application

Broadcast like Studios and outside broadcasting
Instrumentation like Test & measurement
Medical like Diagnostic devices
Transport Avionics
Energy like Nuclear
Defense & Security like Communication systems
Extreme like Motorsports

Dimensions and Keying

Aviation Circular Push Pull Connector 0

Aviation Circular Push Pull Connector 1

Certificate

CE
REACH
RoHS
ISO9000-2015

Advantages

8 years focus on connectors
professional teams in R&D,manufacture,quality testing and export sales to make sure your connectors perfect and have relatively low prices
customized your own connectors according to your requirement
Factory supplier,provide fast delivery and perfect after-sales service you can purchase without scruple.
Help customers to make model selection : Just e-mail us and give the prtion information

RFQ

1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing circular connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample :
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5. What is your payment terms?
Raymo: 100% T/T deposit when customer place order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory
has instruments to tested them before shipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!

Etykietka:

Miejsce pochodzenia:	Shenzhen, Chiny
Nazwa handlowa:	RAYMO
Orzecznictwo:	RoHS2.0, ISO:9001-2015, CE , SGS, REACH
Numer modelu:	EGJ.1B.305.CLA

Minimalne zamówienie:	5 sztuk/sztuk
Cena:	negotiable
Szczegóły pakowania:	Plastikowa torba i karton
Czas dostawy:	5-7WDS
Zasady płatności:	Western Union, L/C, D/A, D/P, T/T
Możliwość Supply:	5000 sztuk / tydzień

Typ:	Korzyste złącza pchania lotnictwa	Rozmiar skorupy:	1b (dostępny jest inny rozmiar skorupy)
Nr kontaktowy:	2.3.4.5.6.7.8.9.10.14.16 Pins	izolator:	PPS
Wytrzymałość:	5000 razy pchanie	Materiał kontaktowy:	Stop miedziany ze złotem
