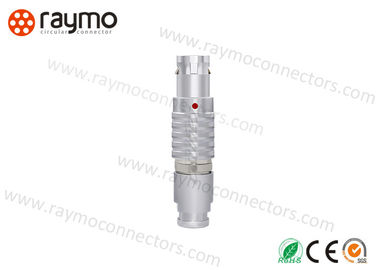

Name: Communication Systems In Line Cable Connector 1B 2 Pins FGA FNA FHA 30 Degree
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: FGA.1b.302.clac62z
Price: 11.10 USD
Availability: InStock

FGA FNA FHA in line cable connector, 1B 2 pins Circular Push Pull connector for Communication systems

Description FGA.1B.302.CLAC62Z

FGA Cable Mount Straight Plug, Two keys, 30 degree, Circular Push Pull Connector
5000 time push pull life cycle
1B shell size, 2pins, male solder contacts

B Series connector with the following main features

1.Shell size	00 to size 3(#00, #0, #1, #2, #3, #4)
2. Multi-pole types	2 to 32 contacts
3. Security	push-pull self-latching system
4.contacts (straight or elbow)	Solder ,print or crimp
5.Packing	High packing density for space saving
7.Key options	0°,30°,45°,60° and other de
8. Male contacts and female contacts	brass with gold-plated surface
9. Out shells	brass with Natural chrome nickel-plated surface
10. Insulator	PPS is standars, PEEK
11.Screening	360 angle screening for full EMC shielding.

Shell size and contacts for option

Shell size	Contacts no. ( Both with Solder & PCB type )
Shell size	Contacts no. ( Both with Solder & PCB type )
RM-0B	2	3	4	5	6	7	9
RM-1B	2	3	4	5	6	7	8	10	12	14	16
RM-2B	2	3	4	5	6	7	8	10	12	14	16	19
RM-3B	3	4	6	8/(6+2)	9(8+1)	10	12	14(13+1)	14	16	18	21	26	30	32
RM-4B	7	10	24

Raymo Company information

Raymo connector is a professional supplier of high-end connector solutions, company have advanced prction equipment, testing equipment, high-end CNC lathe and a professional team, dedicated to provide innovative solutions & high quality prcts for industrial, telecommunication, military, medical and automotivemarkets.
By the end of 2019, the company has successfully passed the ISO9001 (2015) quality system certification,
ROHS certification, CE certification, Reach certification and other authoritative certification.

Application

Automotive
Audio-video
Aviation
Communications
Industrial Control
Information Systems
Machines,Medical
Medical
Military

Exhibition

2020.11 Electronica Munich, Germany
2019 9.24-9.26 Testing Expo, Shanghai
2018 11.12-11.15 Electronica Munich, Germany
2017 9.11-9.16 NAB Show,Netherlands
2016 4.11-4.15 HK Fair
2015 10.2-10.7 ICEEB, Brasil
2014 10.11-10.15 HK Fair
2014 4.11-4.15 HK Fair

Custom service

Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
Cable assembly service: we can supply cable assembly service according to your requirements.
Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
Cable assembly solution supply: We can make cable assembly service solution to meets you need.
Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.

RM-B Series FGG Shell type dimension and pictures

Communication Systems In Line Cable Connector 1B 2 Pins FGA FNA FHA 30 Degree 0

Keys

Communication Systems In Line Cable Connector 1B 2 Pins FGA FNA FHA 30 Degree 1

Our Certificate

CE
Rohs
ISO:9000-2015
REACH
SGS

FAQ

1.Can I order a small list ?
---Of course, you can.
2.What quote do you offer?
---FOB , CIF and others ways according the your needs.
3.How transport?
---Sea Freight, Air Freight and others Express Delivery ways for you.
4.What is the quality of your prcts guarantee?
---We have passed ISO9001:2015 Quality Management System Certification, CQM Quality Management System Certification and IQNet Quality Management System Certification, If the quality doesn't accord the standard, you can exchange the goods for free.
5.Do you have after-sales service?
---Certainly,you can contact us at any time.

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!

Etykietka:

Miejsce pochodzenia:	Shenzhen, Chiny
Nazwa handlowa:	RAYMO
Orzecznictwo:	CE, RoHS2.0, ISO:9001-2015, SGS, REACH
Numer modelu:	FGA.1b.302.clac62z

Minimalne zamówienie:	1 sztukę
Cena:	negotiable
Szczegóły pakowania:	Plastikowa torba i karton
Czas dostawy:	5-7 dni roboczych
Zasady płatności:	Western Union, L/C, D/A, D/P, T/T, MoneyGram
Możliwość Supply:	5000 sztuk / tydzień

Szereg:	Raymo B okrągłe złącze pchnięcia	Numer kontaktowy:	2. 3. 4. 5. 6. 7. 9 biegunów
izolator:	PPS	Płeć:	Mężczyzna i kobieta
aplikacja:	Wideo audio	Materiał kontaktowy:	Stop miedziany ze złotem
Temperatura:	-50 ° C do 200 ° C.	Wytrzymałość:	5000 razy pchanie
Podkreślić:	electronics component connectors , cable connector plug
