Name: Medical Grade Circular Plastic Connectors , Male Speaker Connectors Parallel Wiring Mode
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: PRG.M0.3GL.LC65G
Price: 2.30 USD
Availability: InStock

Medical Grade Circular Plastic Connectors , Male Speaker Connectors Parallel Wiring Mode

Podstawowe informacje

Miejsce pochodzenia:	Chiny
Nazwa handlowa:	RAYMO
Orzecznictwo:	RoHs 2.0 CE , ISO , SGS
Numer modelu:	PRG.M0.3GL.LC65G

Minimalne zamówienie:	1 sztukę
Cena:	negotiable
Szczegóły pakowania:	Plastikowa torba i karton
Czas dostawy:	5-7 dni roboczych
Zasady płatności:	T/T, PayPal, eBay
Możliwość Supply:	5000 sztuk / tydzień

Skontaktuj się teraz

Nazwa PRCT:

Kabel do złącza kablowego

Rozmiar skorupy:

1 szt

Nr kontaktowy:

3pin

Materiał skorupy:

PC Grey Kolor

Śruba:

szary, czerwony, niebieski, zielony, czarny, biały, żółty

izolator:

PPS

Podkreślić:

plastic push pull connector

cable assembly connector

Medical plastic connector PRG cable to cable connector PRG socket

can be 100% compatible with origina LEMO redel PRG connectors
push pull self locking system
meet CE ROHS2.0

Connector Details table

P/N .	PRG.M0.3GL.LC65G
Description	cable to cable connector, 3pin female contact, 65 cable collet, round nut in gray colour, 1 key, 0 degree
Characteristics
1	Secure high performance push-pull Self-locking system
2	IP40
3	3 codes alignment Key and Polarized Keying System to avoid cross-interface.
4	Many colour options RED, GREEN, BLACK, WHITE, YELLOW, BLUE, GRAY
5	High pin density contributing to equipment miniaturization
6	Shock resistant designs
7	Functional in a wide temperature range from -40°C to +125°C
8	Available solder and PCB or right angle PCB contact.
9	ISO:9001-2015, CE ,RoHS2.0, SGS, Reach

Technical Characteristics

Pulling and inserting times : ＞5000 times
Humidity : Maximum humidity up to 95% at a temperature of 60 °
Temperature range: - 40° C, +120° C
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance : 100 g [ 6 ms]
Protention Level : IP40
Salt Cpray Corrosion test: ＞96Hrs
Terminal Type: solder
Number of positions: 1-32pins
Fastensing Type: Push pull
Shell Material : PC
Shell Colour : gray
Contact Material: Brass
Insert Material : PPS , PEEK

RAYMO Company Intrce

As manufacturer located in Shenzhen, focusing on manufacturing connectors and cable assemblies serive more than 150 countries since 2010.

Raymo Connectors is committed to working closely with its customers to equip their application with the most appropriate connector and cable system. Our prct range comprises over 3,000 standard items and we are always prepared to develop customized solutions for specific requests.

PHOTOS

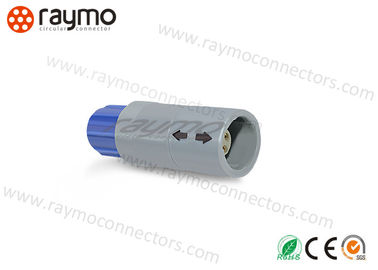

Medical Grade Circular Plastic Connectors , Male Speaker Connectors Parallel Wiring Mode 1

Raymo Exhibition is coming soon

2020.11 Electronica Munich, Germany
2019.9. Testing Expo, Shanghai
2018.11 Electronica Munich, Germany

RAYMO Prcts Applicaiton

Medical imaging
Scientific research,Automation,Test & measurement
Avionics,Transport
Communication systems, Defense & Security
High Speed Camera
Batteries
Weatherproof applications

RAYMO Certificate

RoHS 2.0
CE
SGS
ISO:9001-2015
Reach

Why Choose Raymo as a supplier?

Easy mating, can be blind-mated guiding mechanism ensures precise alignment
Increased safety and user friendliness mechanical and color coding prevent misconnection
Increased equipment life span guiding mechanism optimally protects the contacts
Robust and shock resistant designs ideal for equipment used in the field
High performance connectors designed and tested to withstand extreme conditions
Sealed up to IP50 and corrosion resistant usable underwater
Sterilizable ideal for medical applications
Functional in a wide temperature range from -65°C to +200°C

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
