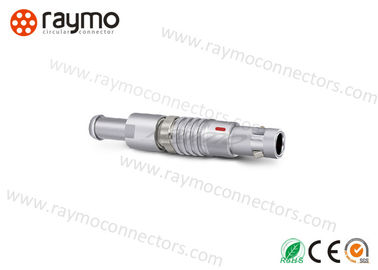

3 Pins Lemo Push Pull Connector Cable Mount Plug Multiple Key Options Waterproof

3 Pins Lemo Push Pull Connector Cable Mount Plug Multiple Key Options Waterproof
3 Pins Lemo Push Pull Connector Cable Mount Plug Multiple Key Options Waterproof 3 Pins Lemo Push Pull Connector Cable Mount Plug Multiple Key Options Waterproof 3 Pins Lemo Push Pull Connector Cable Mount Plug Multiple Key Options Waterproof 3 Pins Lemo Push Pull Connector Cable Mount Plug Multiple Key Options Waterproof
Podstawowe informacje
Miejsce pochodzenia: Shenzhen, Chiny
Nazwa handlowa: RAYMO
Orzecznictwo: RoHS2.0, SGS, REACH, CE, ISO:9001-2015,
Numer modelu: FGG.00.303.Clad32Z
Minimalne zamówienie: 5 sztuk/sztuk
Cena: negotiable
Szczegóły pakowania: Plastikowa torba i karton
Czas dostawy: 5-7WDS
Zasady płatności: Western Union, L/C, D/A, D/P, T/T
Możliwość Supply: 5000 sztuk / tydzień
Skontaktuj się teraz
Typ: Kompatybilne złącze Lemo aplikacja: Zastosowanie testowe i meAanalysis
Szereg: Seria Lemo 00 kablowa złącze okrągłe Nr kontaktowy: 2,3,4 piny
izolator: PPS/Peek Ranking IP: IP50
Obróbka powierzchniowa: Czarne poszycie chromowe, szalik niklu, chromowany chrom Wytrzymałość: 5000 razy pchanie
Podkreślić:

electronics component connectors

,

cable connector plug

Cable mount plug FGG EGG 00 3pins LEMO push pull connectors



RAYMO P/N

Lemo P/N

DESCRIPTION

RM-FGG-00C-302-JS32Z

FGG.00C.302.CLAD32Z

FGG cable mount plug,00B 2pins male solder contacts,nautral shell,32 cable collet with a bend relief

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented circular push pull connector and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers

Main Features

100% compatible with LEMO FGG EGG

security of the Push-Pull self-latching system

multipole types 2 to 32 contacts

solder/ print contacts (straight or elbow)

multiple key options to avoid cross mating,such us 30, 45, 60, 90, 135

high packing density for space savings

5000 times push pull



Technical Characteristics

Temperature Range

- 65° C, +200° C

Resistance to vibrations

15 g [10 Hz - 2000 Hz]

Shell Material

Brass with chrome plated

Humidity

up to 95% at 60° C/140F

Shock Resistance

100 g [ 6 ms]

Salt spray corrosion test

>144hr

Climatical Category

50/175/21

Shielding (min)

> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]

IP Rating

IP50

Endurance(shell)

5000 mating cycles

RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application.

3 Pins Lemo Push Pull Connector Cable Mount Plug Multiple Key Options Waterproof 0



Shell size Contacts no. ( Both with Solder & PCB type )
00 2 3 4 　 　 　 　 　 　 　 　 　 　 　 　
0B 2 3 4 5 6 7 9 　 　 　 　 　 　 　 　
1B 2 3 4 5 6 7 8 10 12 14 16 　 　 　 　
2B 2 3 4 5 6 7 8 10 12 14 16 19 　 　 　
3B 3 4 6 8/(6+2) 9(8+1) 10 12 14(13+1) 14 16 18 21 26 30 32
4B 7 10 24 　 　 　 　 　 　 　 　 　 　 　 　



3 Pins Lemo Push Pull Connector Cable Mount Plug Multiple Key Options Waterproof 1


RFQ:

1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing circular connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample :
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5. What is your payment terms?
Raymo: 100% T/T deposit when customer place order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory
has instruments to tested them before shipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
