RM - S Series Half Moon Connector Quick Lock Automotive Application Military Grade

RM - S Series Half Moon Connector Quick Lock Automotive Application Military Grade
RM - S Series Half Moon Connector Quick Lock Automotive Application Military Grade RM - S Series Half Moon Connector Quick Lock Automotive Application Military Grade RM - S Series Half Moon Connector Quick Lock Automotive Application Military Grade RM - S Series Half Moon Connector Quick Lock Automotive Application Military Grade
Podstawowe informacje
Miejsce pochodzenia: Shenzhen, Guangdong
Nazwa handlowa: RAYMO
Orzecznictwo: ISO9001:2015,CE, SGS,, ROHS2.0, REACH,
Numer modelu: RM-FFA-1SC-304JS52Z
Minimalne zamówienie: 1PC
Cena: negotiable
Szczegóły pakowania: 100pcs/ctn
Czas dostawy: 2-7 dni roboczych
Zasady płatności: L/C, D/A, D/P, T/T, Western Union, Moneygram
Możliwość Supply: 50000 sztuk na tydzień
Skontaktuj się teraz
Typ blokady: Półksiężyca pchania Rozmiar skorupy: 00, 0s, 1s, 2s
aplikacja: Wojskowy Płeć: mężczyzna, kobieta
Materiał izolatorowy: PPS, zajrzyj
Podkreślić:

cable elbow connector

,

cable to cable connector

Prct Description

LEMO Half moon type Push Pull electrical Metal Connector for Military connector

Model type have FFA, FFE, FFF, ERA, ERN, ERT,EPE





Main Feature
Main Feature Self-latching push-pull system
High packing density
Low weight
Aesthetically pleasing appearance
Rugged construction
Reliable performances
Small size
Ease of use
Wide choice to suit application



Technical specifications



Pulling and inserting times ＞5000 times
Humidity Maximum humidity up to 95% at a temperature of 60 °
Temperature range - 65° C, +200° C
Vibration 15 g [10 Hz - 2000 Hz]
Shock Resistance 100 g [ 6 ms]
Salt Cpray Corrosion test >96hr
Protention Level IP 68
Connector Type Socket, female pins
Number of positions 1-32pin
Contact Terminal Solder
Fastensing Type Push-pull
Shell Material Brass
Shell Finish Chrome Plated
Shell Colour Silver, Black
Contact Material Brass
Contact finish Gold
Insert Material PPS, PEEK

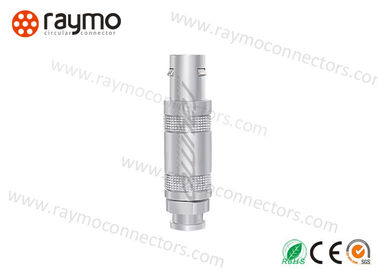

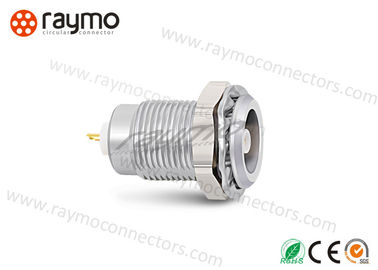

Prct Photo:

RM - S Series Half Moon Connector Quick Lock Automotive Application Military Grade 0



RM-S series Prct  Quick Details:





RM-S Series half moon Short Staright Cable Plug
Shell size 00,0S,1S,2S Shell model Straight plug FFA
Gender Male, Female Contact No. 1,2,3,4,5,6
MOQ 1pc Free Sample available
Endurance(shell) 5000 mating cycles IP Level IP50







Push Pull Outdoor Circular Waterproof Connector Application:
  1. Military
  2. Communications
  3. Industrial Control
  4. Information Systems
  5. Machines
  6. Test and Measurement
  7. Automotive
  8. Audio-video
  9. Aviation
  10. Data Acquisition
  11. Data Transfer Equipment
  12. Mle Power
  13. Sensor Systems Instrumentation,
  14. Analysis Systems
  15. Medical Equipments
FAQ:



1.What is your payment terms?
Raymo: 100% T/T deposit when customer place order.

2. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them beforeshipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.

3. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing circular push pull connectors and cable assembly since 2010.
Our factory is SGS audited manufacture and worked on www.alibaba.com more than 4 years.
4. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
5. Free sample :
RAYMO: Available. Any needs, please contact us:
6. What about the delivery time?
Raymo: sample for 1-2 working days, mass prction for 5-10 working days.
